€782,95
Description

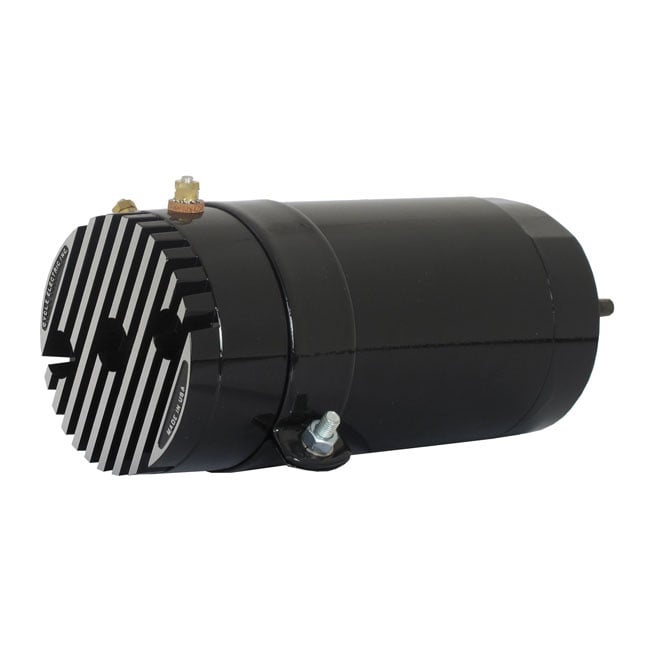

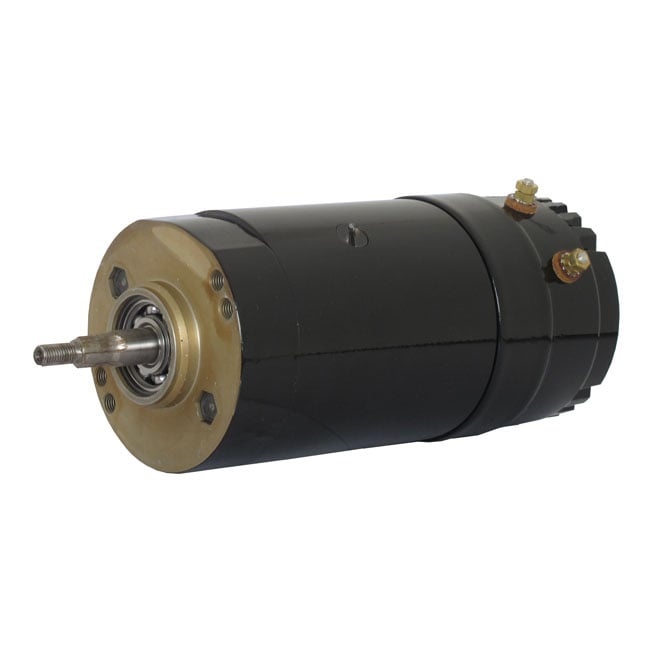

CYCLE ELECTRIC 12-V LO Generator

CYCLE ELECTRIC 12-V LO Generator with built-in electronic voltage regulator available in black color. This is a special Low Output version, that offers reduced charging voltage. It designed to be used for models with in-tank (horse shoe) batteries.

Features:

  • Custom Low Output replacement for OEM 29975-65B generator
  • Designed to be used for models with in-tank (horse shoe) batteries
  • Hot batteries have an increased chemical reaction and therefore draw a higher amperage which, in extreme situations, can cause overcharging and a boiling battery. The 926745 low amperage model will help prevent this.
  • High quality USA made
  • Same gear can be re-used

Tech tip:

  • Polarizing generator
  • Connect the 'F' terminal to ground while the motor is off, and briefly flash the 'A' wire with positive
  • Remove ground from 'F' terminal
  • If you have properly installed a working regulator it will turn on and ground the 'F' terminal in which case you will not need to use an external ground
  • Caution! Do not flash the 'F' terminal. This will damage the regulator
  • Do not connect the battery to the Field (F terminal) as this will polarize the generator backwards
  • Generators in general don't forget their polarization so it is not necessary to polarize a generator from Cycle Electric Inc. unless it was connected to a battery backwards or inadvertently polarized backwards after it left the factory
  • Only after a long time period generators can struggle to come up and polarization can be a good idea

Compatibility:

  • 65-69 B.T.
  • 65-81 XL (NU)

Note:

  • See 926727 for replacement Low Output electronic regulator only
  • It Will also fit 36-84 H-D when converting to 12 Volt
