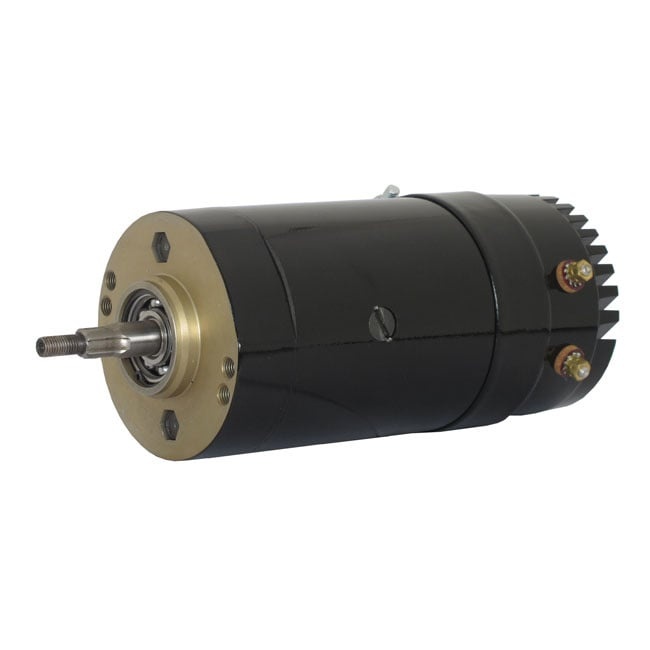

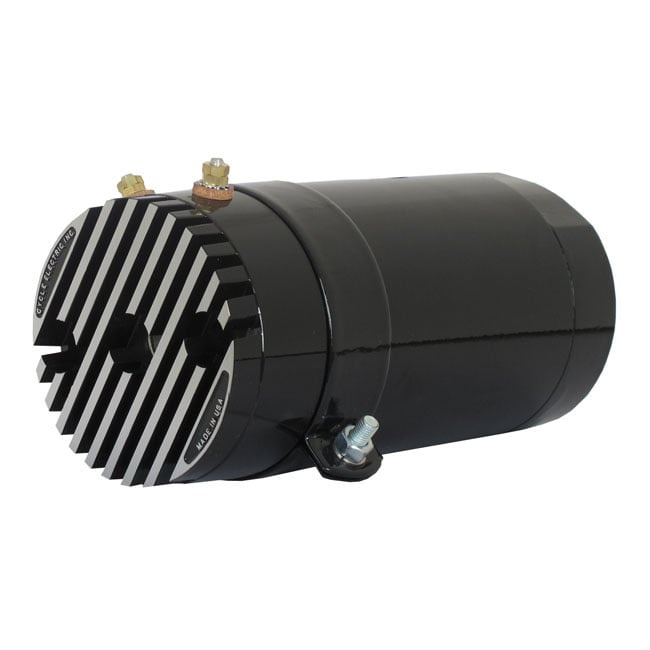

CYCLE ELECTRIC 12-Volt Generator

CYCLE ELECTRIC 12-Volt Generator With built-in cycle electronic voltage regulator with high quality USA made. It allows custom replacement for OEM 29975-65B generator. . It permits XL models to keep their original wiring.

Specifications:

  • Color: Black
  • Standard output
  • High quality USA made
  • Voltage - 12 Volt
  • Built-in cycle electronic voltage regulator
  • Same gear can be re-use

Tech tip:

  • Generator polarizing.
  • Connect the "F" terminal to ground while the motor is off, and briefly flash the "A" terminal with positive
  • Remove ground from 'F' terminal
  • If you have properly installed a working regulator it will turn on and ground the 'F' terminal in which case you will not need to use an external ground
  • Caution! Do not flash the 'F' terminal. This will damage the regulator
  • Do not connect the battery to the Field (F terminal) as this will polarize the generator backwards
  • Generators in general don't forget their polarization so it is not necessary to polarize a generator from Cycle Electric Inc
  • unless it was connected to a battery backwards or inadvertently polarized backwards after it left the factory
  • Only after a long time period generators can struggle to come up and polarization can be a good idea

Compatibility:

  • 65-69 B.T.
  • 65-84 XL (NU)

Note:

  • See 926825 (78-81 XL) or 926826 (82-E84 XL) for XL Sportster connector plug for electronic regulator.
  • See 926726 for replacement electronic regulator only.
  • Will also fit 36-84 H-D when converting to 12 Volt. When replacing 65B generator (82-E84 Hitachi), add H-D #31035-58 (CYCLE ELECTRIC 555773) oil deflector.
  • See 926745 for the special Low Output version, designed to help prevent overcharge for models with hot batteries (read: battery mounted in horse shoe oil tank).
