Elektronikbox Axel Joost Elektronik

Elektronikbox Axel Joost Elektronik B Box. It is Perfect if sufficient room is available and a quick wiring installation is required with or without side stand switch control. It has main connection of 2.5 qmm. It required maximum ambient temperature: 80 degree Celsius.

Specifications:

• Colour: Black.
• Dimensions: 92 mm x 50 mm x 36 mm including connector terminals.
• Body material: shock resistant ABS plastic, waterproof poured resin
• Main connections: 2.5 qmm
• Power consumption in standby: About 0.2 MA
• Maximum ambient temperature: 80 degree Celsius
• Maximum output current: 5 Ampere / output
• Input voltage range: 7 - 18 Volt
• Maximum current / Box: 20 Ampere

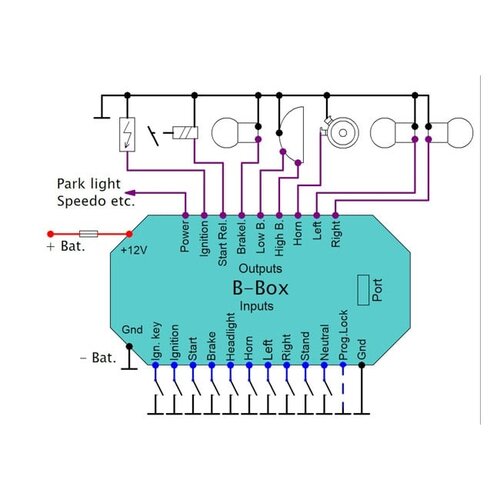

Functions:

• It has Ignition (with or without side stand switch control) via the ignition switch - Switch output, for parking light etc
• Starter (with or without neutral switch control) - Headlamp with button or switch control
• Turn signal relay, controlled with buttons or switches - Brake light with selectable flasher function
