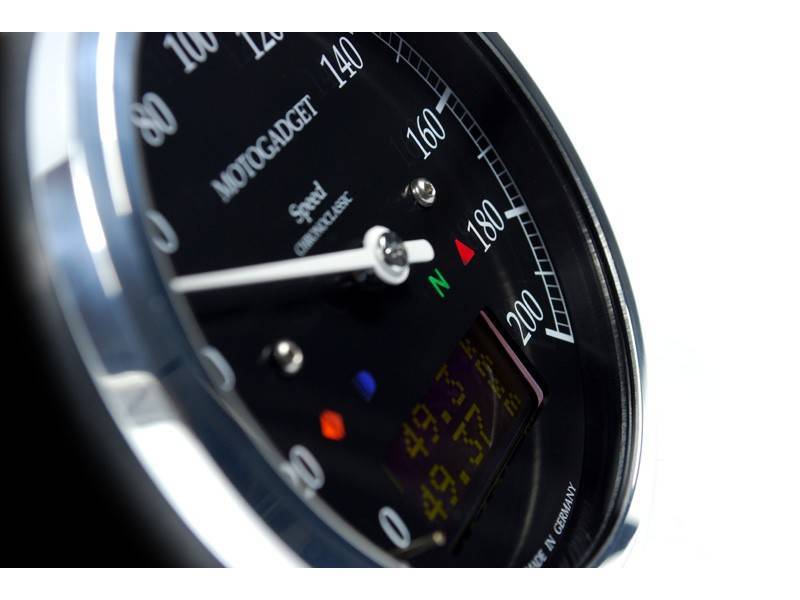

The Motogadget Chronoclassic speedo is an analogue speedometer with many additional features in a classic round casing. Technically identical to the Motoscope classic speedo, it brandishes a black dial and a white indicator. The design resembles old Smiths brand instruments.

Versions
Another distinct characteristic is the dark LCD display of the DarkEdition. It further increases the harmonic look of the gauge.

Please note: We explicitly stress that readability decreases in cases of direct sunlight. If readability is of primary concern to you, please purchase the standard green display.
A technically identical instrument is also available with a white dial (please refer to the Motoscope Classic speedo) or an analogue rev counter (please refer to the analogue tacho CLASSIC series).

Parts delivered
Instrument with approx. 55 cm connector cable, complete wiring, fuse, speedometer sensor M5 x 0,5 fine-pitch thread with 150 cm connector cable, 2x magnet, mini push-button, 3x M4 screw (stainless steel), detailed installation and operating instructions. Please note that temperature and pressure sensors have to be ordered separately (refer to "Accessories").

Specifications

Mounting diameter: 80 mm

Overall diameter (bezel): 85 mm

Depth without cable fitting: 34 mm

Weight: approx. 230 g

Mounting: 3 x M4 threaded hole

Power consumption (in operation): approx. 200 mA (depending on load)

Power consumption (in standby): 0 mA

Operating voltage: 9-18 V

Operating temperature: -20 °C to +80 °C
