HIGHSIDER CNC Alu headlamp bracket set

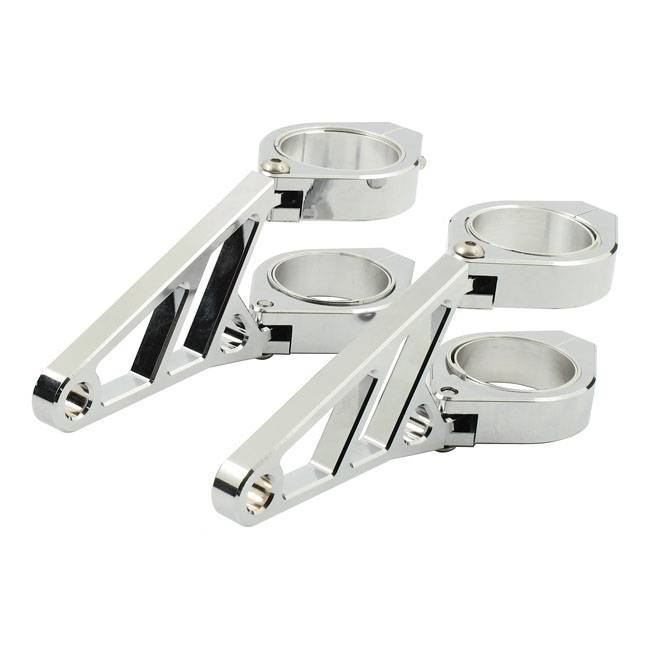

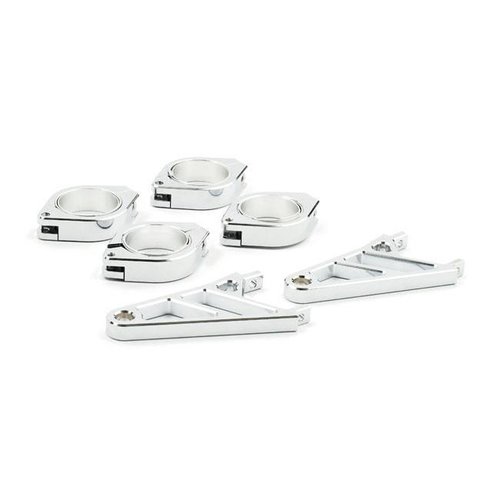

This chrome-plated bracket set made of aluminium includes 4 clamps, 2 brackets and reducing stripes. The brackets are adjustable to the width of the headlamp. Indicators with an up to M10 bolt can be mounted at the bracket.

The clamp has an inner diameter of 41 mm. By using the included reducing stripes, this bracket can be mounted to fork tubes with 40, 39 and 38 mm diameter.

That suits you best – our expansive HIGHSIDER equipment is perfectly fitting for your motorcycle. With a maximum of quality and functionality you can design your bike according to your wishes.

Dimensions:

• Length bracket: 87 mm (centre-to-centre spacing from mounting bolt in the clamp to the headlight mounting hole)
• Length from indicator mount to the mounting bolt of the clamp: approx. 20mm
• Overall length: approx. 100 mm

Delivery contents: 1 Set
