The D64 Custom Style uses a stepper motor for a quick and smooth response. The device has many features such as speed, odometer, trip odometer, speed, fuel gauge, clock, shift light, indicator light, and more. This speedometer is available in black and includes the necessary accessories. E-marked.

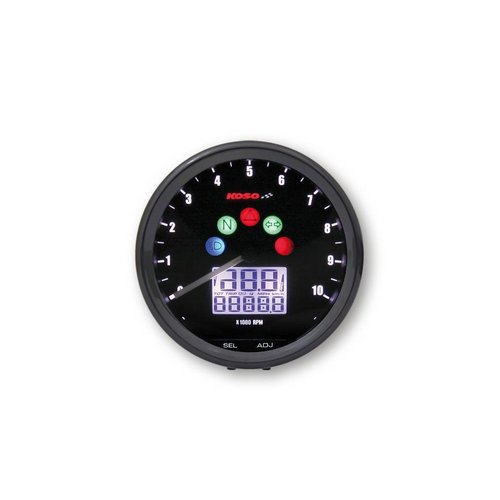

KOSO digital multifunction cockpit, TNT D64 Custom Style Multimeter, black TNT-64 multifunction speedometer is the perfect device for all chopper and special projects.

Features

Speedometer:
• Display range: 0-360 km / h (0-225MPH)
• Display unit: km / h & MPH
Update: <0.5 seconds

Odometer:
• Display range: 0-99999 km (miles) reset automatically after 0-99999 km (miles)
• Display unit: 1 km (miles)

Trip meter A/B
• Display range: 0-999.9 km (miles) reset automatically after 0-999.9 km (miles)
• Display unit: 0.1 km (miles)

Tire circumference setting
• Unit: 1 mm
• Sensor points: 6

Rev counter:
Display range: 0-10,000 U / min

Gear shift indicator
• Setting: 8.000 to 10.000 U / min
• Unit: 100 U / min

Warning (shift light)
• Light on (F-OFF)
• Flash (F-ON)

Speed signal setting:
Setting range: 0.5, 1-24

Speed pulse
• Setting range: HI-Act (Positive) • Lo-Act (Negative)

Fuel gauge:
Display area: 6 Levels
• Unit: Each level corresponds to 16.6%
• Default: 100 ohms, 250 ohms, 510 ohms, 1200 ohms, SW,

User Clock: 24 hours

Voltmeter:
• Display range: DC 8-18 V
• Flashes when the voltage is below 11.5V or higher than 15.5V

Backlight brightness
• Setting: 1-5 (dark to light)
• Unit: Each level corresponds to 20%

Effective tension: DC 12 V

Effective temperature range: -10 - 60 ° C (14 140 ° F)

Standard: JIS D 0203 S2

Dimensions (W x L x H): 68.33 x 64.55 x 54.03 mm

Weight: ± 127.3 g

Indicator lights:
• Indicator (Green)
• Warning Light (Red)
• Neutral (Green)
• Main beam (blue)

Supplied sensor: Passive speed sensor: BF019005

Delivery contents: 1 piece incl. detailed English manual
