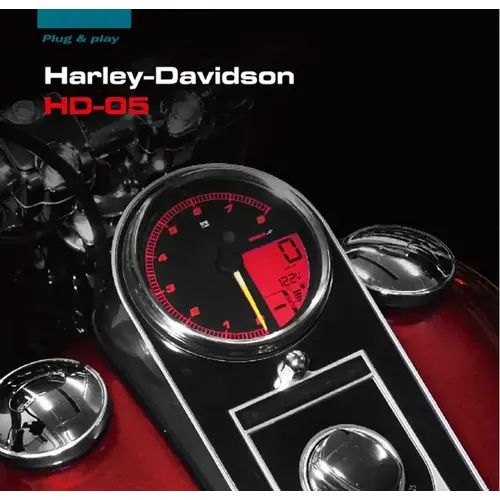

For 4 ½" (=11.43 cm) Harley-Davidson® motorcycles with tank mounted, the New PLUG&PLAY HD-05 series has a speedometer and tachometer combined into one unit. Moreover, there's a gear indicator and an adjustable lighting color. Real-time measurements from the gauge include engine temperature, battery voltage, average fuel economy, and a comprehensive set of parameters to track your motorcycle's health. This Plug & Play set connects directly to the motorcycle's CANBUS system and fits perfectly with the current wire harness.

Features:

• Speed Display

  • Display Range: 0 ~ 225 MPH (0 ~ 360 km/h) -> adjustable
  • Display Unit: 1 MPH or km/h (adjustable)
  • Response Time: < 0.5 seconds

• Odometer

  • Display Range: 0 ~ 999,999 miles (km); when exceeded, the odometer resets to 0
  • Display Unit: 1 mile (km)

• Dual Trip Meter A/B

  • Display Range: 0 ~ 9,999.9 miles (km); when exceeded, the trip meter resets to 0
  • Display Unit: 0.1 miles (km)

• Tire Circumference

  • Adjustment Range: 50 ~ 210%
  • Adjustment Unit: 1%

• Gear Indicator

  • Display: Off / N / 1 ~ 6

• Tachometer

  • Display Range: 0 ~ 8,000 RPM

• RPM Limit Light

  • Adjustment Range: 2,000 ~ 8,000 RPM
  • Warning light flashes once the programmed maximum RPM range is exceeded
  • Adjustment Unit: 100 RPM

• RPM Exceeding Warning Mode

  • Adjustment Range: Light on (F/OFF) / Flash (F/ON)

• Engine Temperature

  • Adjustment Range: 40 ~ 419 °F (40 ~ 215 °C)

• Fuel Gauge

  • Display: 6 fuel level steps

• Fuel Capacity

  • Adjustment Range: OFF / 1 ~ 9.9 US gallons (approx. 37 liters)

• Average Fuel Consumption

  • Display: OFF / L/100 km / km/L / MPG (US spec) / MPG (UK spec)

• Clock

  • Adjustment Range: 12 / 24-hour format

• Voltmeter

  • Display Range: DC 8 ~ 18 V

• Backlight Brightness

  • Adjustment Range: 1/5 (dimmest value) / 5/5 (brightest value)

• Background Colors

  • Adjustment Range: Red / Orange / Yellow / Green / Blue / Indigo / Purple / White

• Maintenance Intervals

  • Adjustment Range: Off / 300 ~ 10,000 miles (500 ~ 16,000 km)
  • Automatic maintenance reminder according to the set interval
  • Adjustment Unit: 100 miles (km)

• Fuel Reserve

  • Display Range: 0 ~ 9,999 miles (km)
  • When the range is less than 10 miles (16 km), the display shows: LO RNG

• Indicator Lights

  • RPM Warning Light
  • Reserve Light
  • Check Engine Light
  • Volt
  • Theft deterrent
  • Cruise control
  • ABS

• Temperature Range

  • 14 ~ 140 °F (10 ~ 60 °C)

• Required Voltage

  • DC 12 V

• Tachometer Standard

  • JIS D 0203 S2

• Size

  (Diameter x Width) Ø 4-5/8 x 1-3/4” (Ø 117 x 45 mm)

• Weight

  • 7.36 oz (208.5 g)
