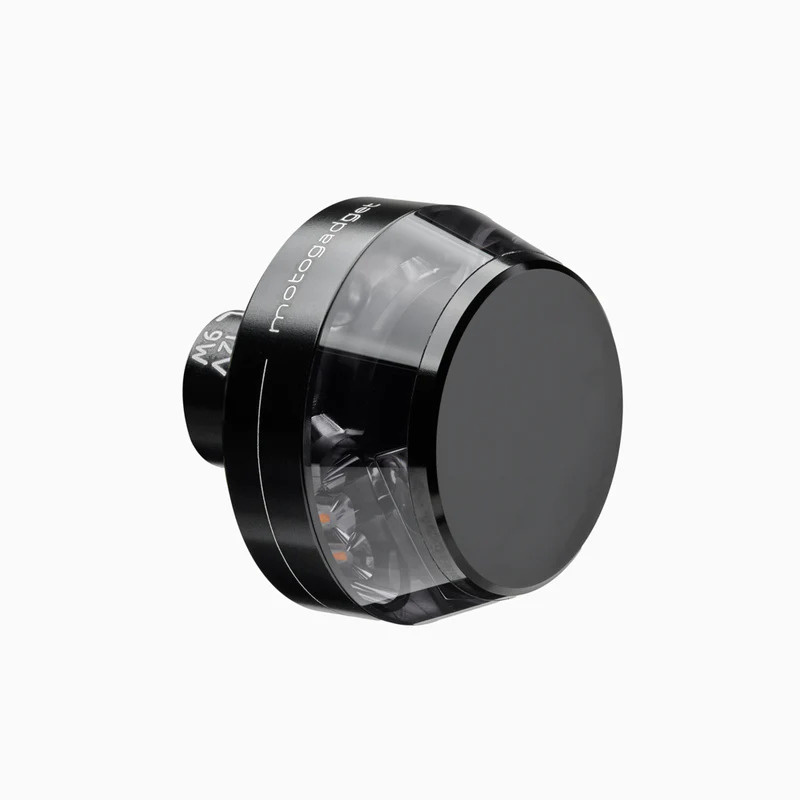

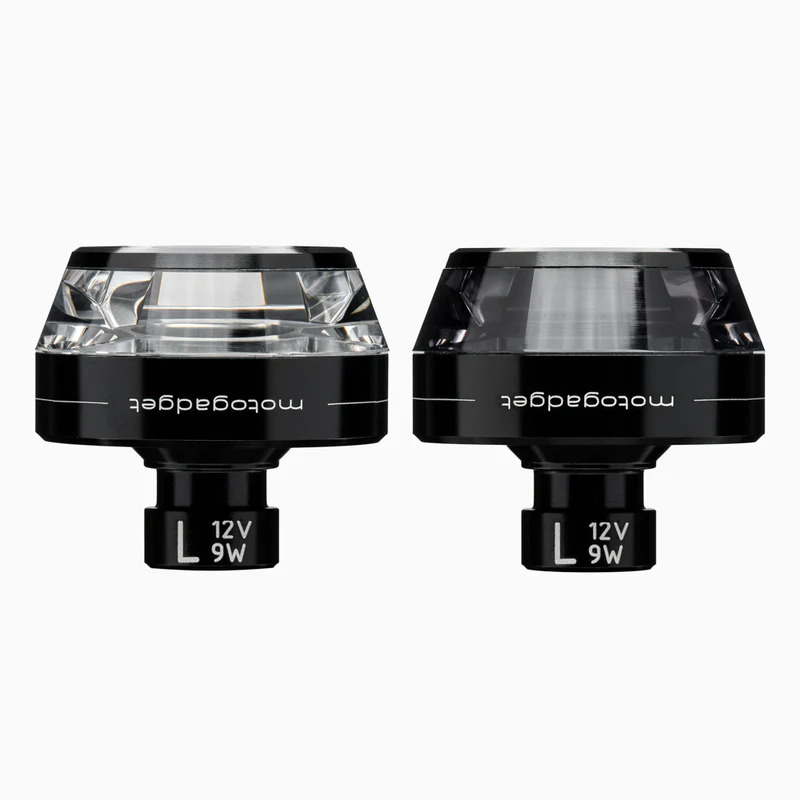

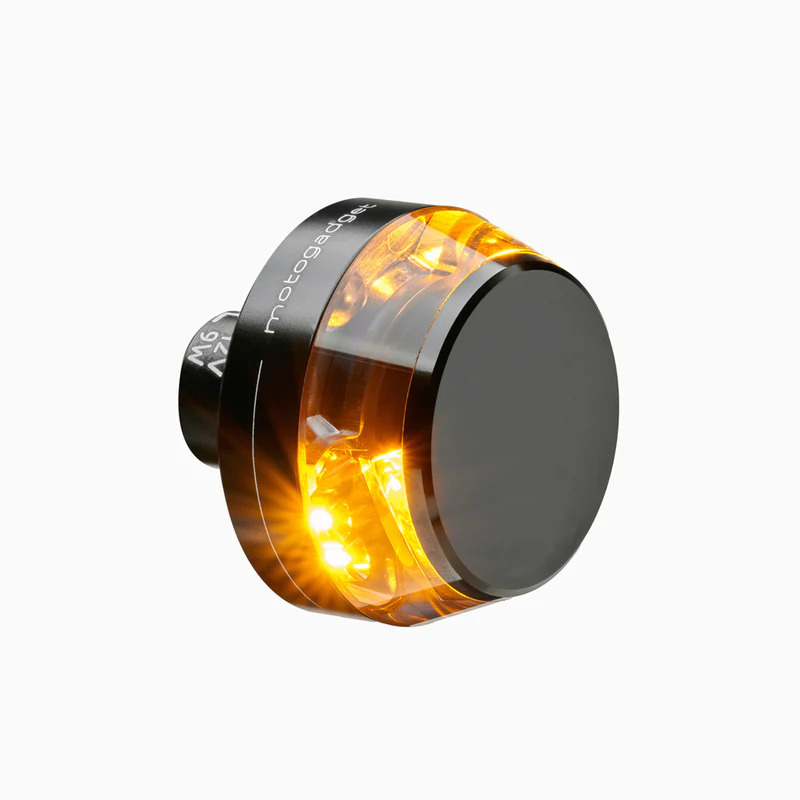

The newest generation of flashing signal lights is called the mo.blaze disc. The clear lit disc on a small metal base that aesthetically blends in with the handlebar end grip is the distinguishing feature of the LED turn signal.

Utilizing the novel TranzLight technology (TLT, patent pending), we have now developed a third turn signal. This methodical approach to development goes beyond just downsizing turn signal housings; instead, it crafts the light straight through a plastic body that resembles a crystal. This innovative design and its functionality are only achievable with the use of cutting-edge manufacturing techniques and accurate optical CAD calculations.

The intensiLED® process of the motogadget produces the light flux needed for the TranzLight concept, which is made up of three crucial parts:

• Selected high-performance LEDs with maximum efficiency and a total output of 9W with a service life of more than 50,000 hours
• an IC-controlled constant current regulation clocked at 330kHz
• a special collimator optic that couples the light from the LED precisely into the plastic body



  Only the integration of control electronics and premium LEDs, as well as the secure installation of the glass body, are made possible by the understated aluminum casing. Naturally, the housing is laser-finely etched, highly polished, and CNC-manufactured. It is also black anodized.

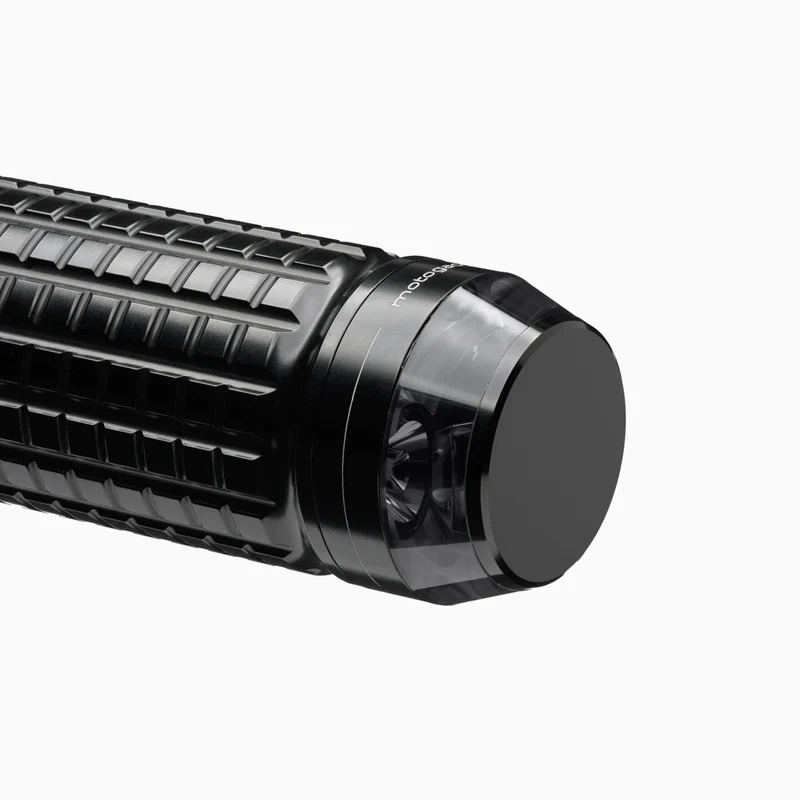

  The handlebar end turn signal is neutral and unobtrusive, building extremely flat and showing through the glass disk. As a result, it suits the widest range of motorcycle styles. With load resistors or any of our load-independent flasher relays (mo.flash, mo.wave, mo.stop, and mo.relay+), the flasher may be used just like any other LED flasher.

  The handlebar end blinker mo.blaze disc that is being shown here is certified by the ECE as a front blinker and has the E-mark.

  Technical Data


• Diameter: 35 mm
• Total length: 68 mm (visible 20mm / in the handlebar 48mm)
• Voltage: 12V
• Power: 9W
• Waterproof - degree of protection IP69
• Vibration resistant
• 3 x high-power LEDs (2 to the front, 1 to the rear)
• Service life: 50000h
• Cable length: approx. 1m
• Weight approx. 50g
