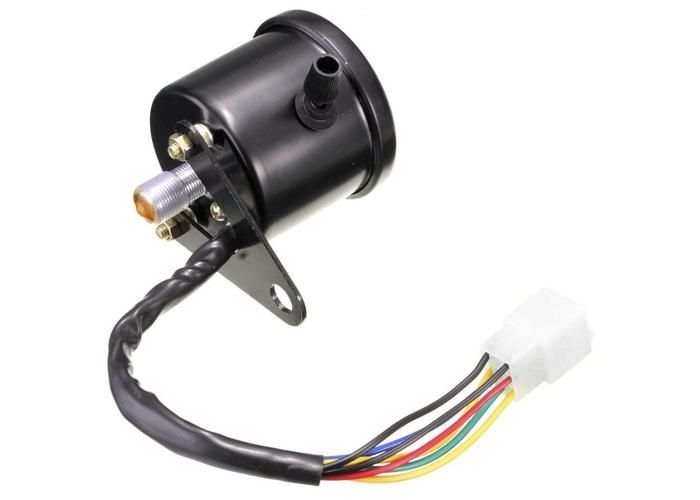

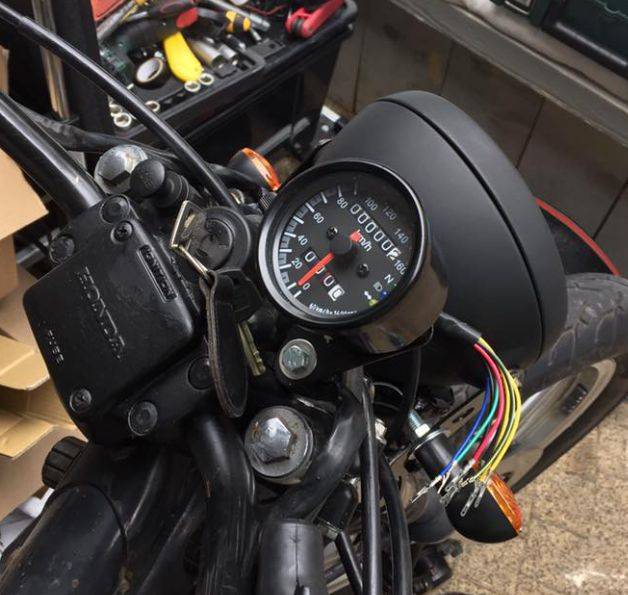

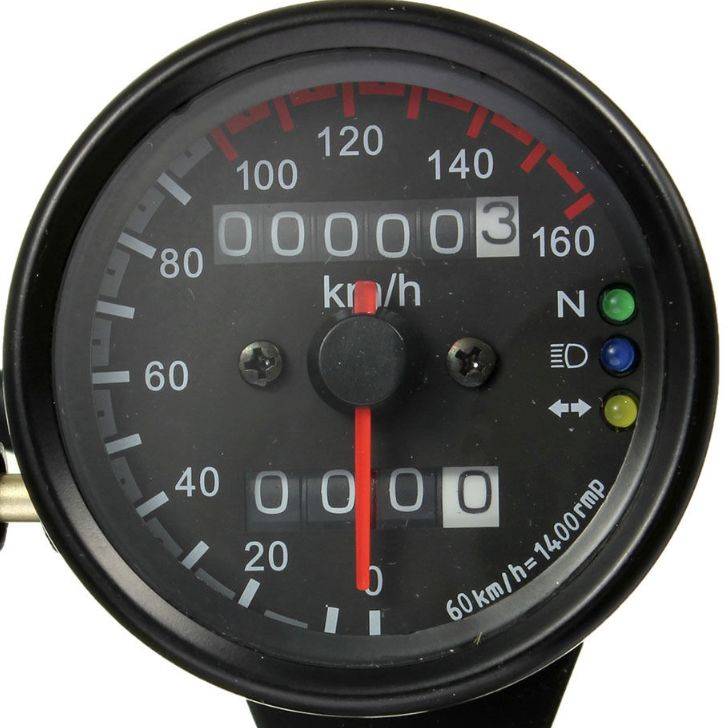

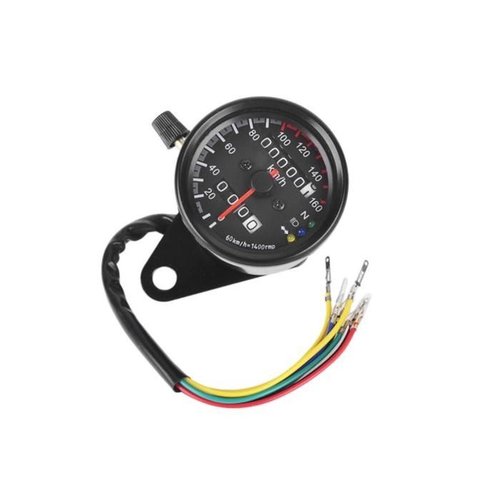

Steel Chopper Speedometer. Illuminated and with a black dial.
D= 60 mm, 60 km/h = 1.400 rpm (K=1,4), 3 function lights.
Wiring:
- 2 yellow: turn signal lights (+)
- 1 yellow/black: all lights (-)
- 1 green: neutral (+)
- 1 green/black: neutral (-)
- 1 red: back light (+)
- 1 red/black: back light (-)
- 1 blue: head light (+)
or
- Black = -
- White/black = -
- Orange = blinker +
- Blue = blinker +
- Green/brown = Neutral +
- Red = backlight +
